PEAK

PEAK

PRIME MODEL

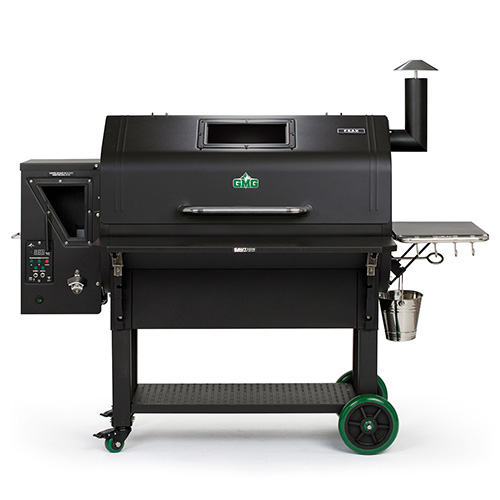

Thank you for purchasing our PEAK Prime WiFi pellet grill. Here are a few tips to get you started.

safety first icon

Before you set up your grill, make sure to keep the entire grill a minimum of 48 inches from all combustibles.

Reference your owner’s manual for all safety information.

Safety Dimensions image
instruction icon

Easy step-by-step

GRILL INSTRUCTION

View More Prime Videos >

Heat Shield

Proper installation of

HEAT SHIELD

PEAK Heatshield image

PEAK

Approximately 9.25″ from inside left wall of grill

Adjustment Rod

Heat Shield

ADJUSTMENT ROD

IMPORTANT: For proper heat shield positioning, use the marks on the adjuster handle. The grill wall should alight with the -0.5 mark on the handle, setting the heat shield 9.25 in. from the left inside grill wall.

Prime Heat Shield Adjuster image
Grease Tray

How to Install

GREASE TRAY

Prime Plus Grease Tray

VERY IMPORTANT:

Install the grease tray with the hole to the left and the half-moon crescent to the right. This ensures proper travel of grease into your grease trough. For easy clean up, feel free to wrap the grease tray in tin foil. MAKE SURE not to cover up the circle on the left side near the thermal sensor.

Proper Airflow

Close doors & lids for

PROPER AIRFLOW

IMPORTANT

ALWAYS close all lids and doors including pellet dump, ash clean-out, and hopper lid before starting the grill.

Close Doors image
Grill Power

Properly connecting

GRILL POWER

Connect the power cords and adapter as pictured here. Make sure to keep your cords safe from rain or weathering.

Prime Power Connection image
First Startup

Recommended steps for

FIRST STARTUP

This procedure is a way to ensure the auger feeds pellets and primes the firebox. ONLY perform these steps on the very first startup or to fill the auger and recharge the firebox if the grills runs out of pellets during a cook.

1st power
Initial Burn

Important steps for

INITIAL BURN

Burn-in the grill at 350°F for 30 minutes to remove any residue from the manufacturing process.

Time30 mins

Burn Icon350°F

Caution IconALWAYS allow your grill reach 150°F before adjusting the temperature.
Odd Sounds

The grill will make

ODD SOUNDS

HopperFan

Huffing noises are normal.

The combustion fan, inside the hopper, will turn off and on regularly to provide the correct amount of oxygen to the fire to maintain the set temperature.

Power Down

How to correctly

POWER DOWN

IMPORTANT: Never unplug the grill without running through fan mode.

Press the red power button to switch the grill into fan mode. DO NOT unplug the grill or press the power button while it is in fan mode. Fan mode is important as it not only cools down the grill properly but also blows ash out of the firebox for your next cook. Once fan mode is complete and the display reads “oFF”, hold down the power button for 7 secs until the screen goes dark. At this point the grill has successfully powered down. You can leave the grill plugged in for quicker power up next time or unplug it if you prefer.

Prime Power Down
Standard Startup

After first use steps for

STANDARD STARTUP

IF UN-PLUGGED

Plug in the grill. The display should read “off”. Press the red power button to turn it on. The unit will go through it’s 0-1-2-3 process and heat up to 150°F.

Unplugged

IF LEFT PLUGGED IN

The display should be dark. Press and hold the red power button for 7 secs. The display should read “off”. Press the red power button to turn the unit on. The unit will go through it’s 0-1-2-3 process and heat up to 150°F.

Plugged In image

caution IconALWAYS allow your grill reach 150°F before adjusting the temperature.

Meat Probes

Connecting and using your

MEAT PROBES

Meat Probe Use

To use this feature, just plug the connector into the receptacle on the front of the controller.

Lift the stainless flap on the left side of the grill and push the probe through the hole. Then, insert the probe into the center of the food you are cooking. Press either the Probe 1 or 2 button to display the temperature of that probe. This process takes a minute or two to stabilize.

To return to the grill temperature display, simply press the probe button again. If you do not have the probe installed in the control panel, then your digital display will read “NFD” (no food) when you press either probe button. The probe is not suitable for reading temperatures above 257°F (150°C).

IMPORTANT: Always make sure you switch back to grill temperature display before changing your grill temp.

Grill Cleaning

Recommended regular

GRILL CLEANING

ABOUT EVERY 2-3 BAGS

ABOUT
EVERY
2-3 BAGS
80-100LBS

ALWAYS ENSURE THAT THE GRILL IS COLD AND THE FIRE IS OUT BEFORE CLEANING.

Keep the inside of the grill clean using a Shop-Vac. This will take only a few minutes. Remove the interior parts and vacuum any ash and residue out of the base of the grill and the firebox. WAIT AT LEAST ONE HOUR AFTER TURNING OFF THE GRILL BEFORE USING THE ASHVAC.

Ash Vac Clean out

AshVac Clean-Out

Use this method to easily clean out the firebox without removing any internal parts. Open the ash clean-out door located on the right side of the grill. Place the end of the vacuum hose over the hole of the clean-out tube that runs into the base of the burn pot. This will remove most of the excess ash from the firebox. THIS DOOR MUST BE CLOSED WHEN OPERATING THE GRILL.

Air Temperature

Understanding your grill’s

AIR TEMPERATURE

The PT200 Platinum Sensor sends data to the computer. This “brain” analyzes the data and adjusts the airflow and pellet fuel flow to maintain the set temperature. Many things affect the data gathered by the sensor–opening the lid, wind, grease splatter, humidity, altitude, and gravity (if the grill is not on level ground).

The computer analyzes all the erratic information and averages it over time. Then, it displays the best result as the most accurate representation of the grill’s current temperature. This is why an instantaneous air temperature reading from a third-party product does not provide much useful information.

Startup Cycle

Understanding the 0-1-2-3’s

STARTUP CYCLE

123-Startup
Smart Control

Welcome to new age

SMART CONTROL

TIP: The serial # on the back of your grill is your grill’s WiFi password.

ALWAYS check to make sure your grill has the latest firmware. See page 81 of your manual, for the full app guide. Also check out the Smart Control section on our website: greenmountaingrills.com/smart-control

MobileApple StoreGoogle Playstore
Support

Have questions or need

SUPPORT?

Prefer visual instruction?
View our videos >

Need support? Go to:
Support Page >

Registration

Grill Warranty

REGISTRATION

Register your grill and enter to win some of our Pro Accessories or a free bag of Pellets.
