TEMPERATURE CONTROLLED

Wood-Feeding

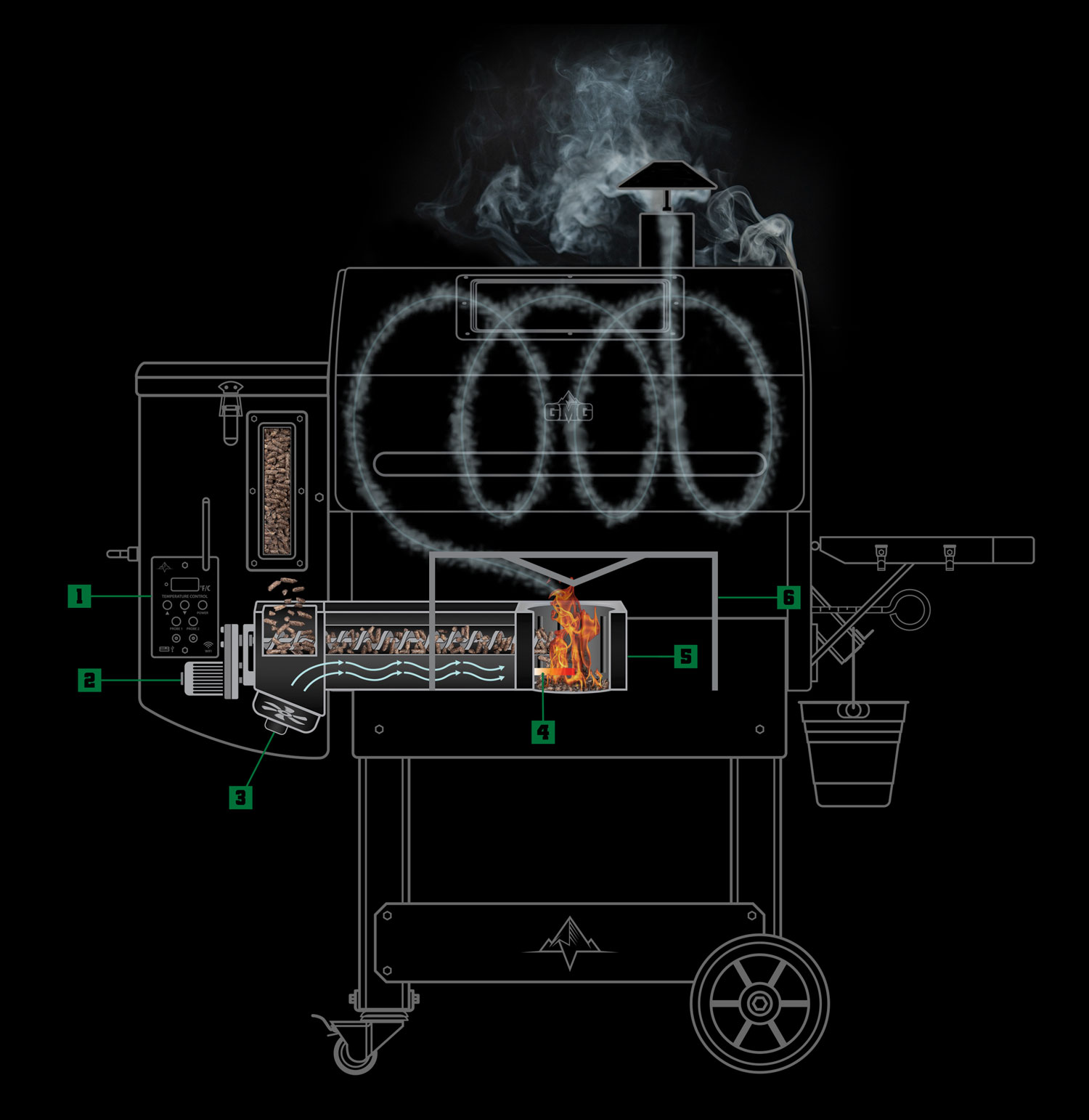

A motor turns the auger, which feeds pellets into the firebox. There, a hot rod automatically ignites the pellets and a combustion fan below keeps them burning. Vents vertically line the inside of the firebox creating a circular air flow. A fan inside the pellet hopper maintains positive pressure to prevent burn-back in the auger tube. When they meet, these two air flows create the ultimate wood-burning fire and circulate pure hardwood smoke flavor.

STAINLESS STEEL

Heat Distribution

The *heat shield that covers the firebox distributes the heat to both sides of the grill, causing it to flow up into the convection-style grill chamber. A sensor mounted inside the grill sends data to the on-board computer 10 times every second, and the controller adjusts the air and pellet flow to maintain the temperature you set.

*Heat shield styles and positioning vary between the different grill models. View our support page for more information on heat shield setup and configuration.

WOOD-FIRED ANATOMY

Jim Bowie

  1. 1 Thermal Sensor
  2. 2 Pellet Hopper
  3. 3 Hopper Fan
  4. 4 Digital Controller
  5. 5 Low Pellet Sensor
  6. 6 Auger
  7. 7 Grease Tray
  1. 8 Heat Shield
  2. 9 Combustion Fan
  3. 10 Igniter
  4. 11 Firebox
  5. 12 Drip System
  6. 13 Chimney
  7. 14 Dome Thermometer

Daniel Boone

  1. 1 Thermal Sensor
  2. 2 Pellet Hopper
  3. 3 Hopper Fan
  4. 4 Digital Controller
  5. 5 Low Pellet Sensor
  6. 6 Auger
  7. 7 Grease Tray
  1. 8 Heat Shield
  2. 9 Combustion Fan
  3. 10 Igniter
  4. 11 Firebox
  5. 12 Drip System
  6. 13 Chimney

Davy Crockett

  1. 1 Thermal Sensor
  2. 2 Pellet Hopper
  3. 3 Digital Controller
  4. 4 Auger
  5. 5 Combustion Fan
  6. 6 Grease Tray
  7. 7 Heat Shield
  1. 8 Igniter
  2. 9 Firebox
  3. 10 EZ Fold & Carry Legs
  4. 11 Drip System
  5. 12 Chimney
