The Green Mountain
DIFFERENCE

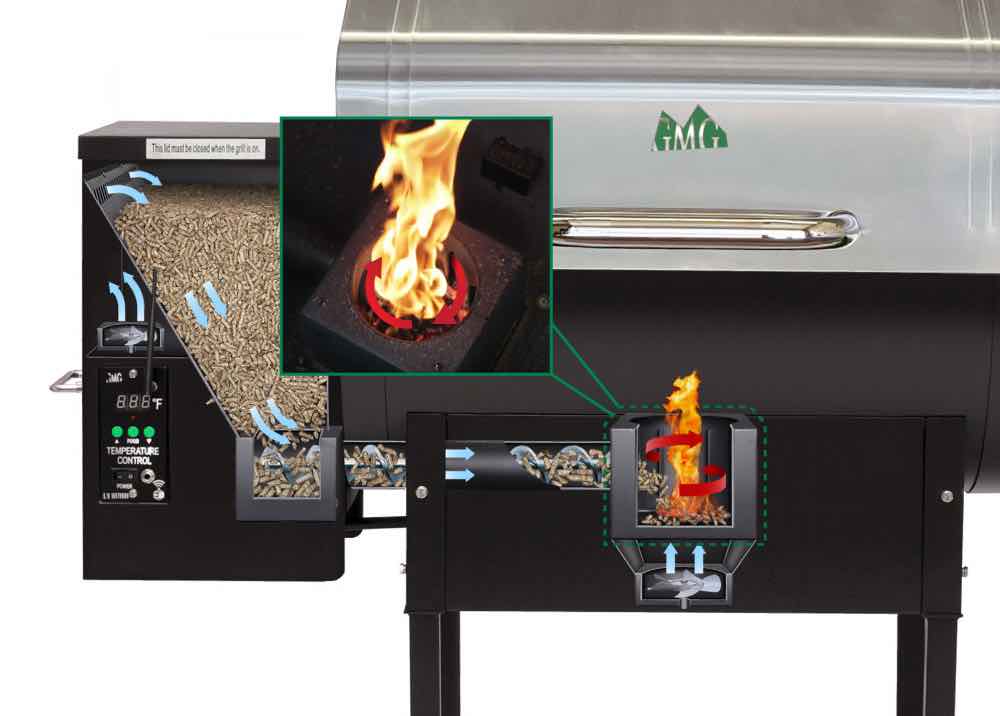

VARIABLE SPEED
Dual Fan System
Hopper Fan creates positive pressure preventing burn-back in the hopper.
Combustion Fan maintains cooking temps in the most extreme weather and blows most of the ash out of the firebox for less frequent cleaning.
Venturi-Style Firebox creates a burn pot cyclone for maximum heat distribution and complete combustion with no waste.

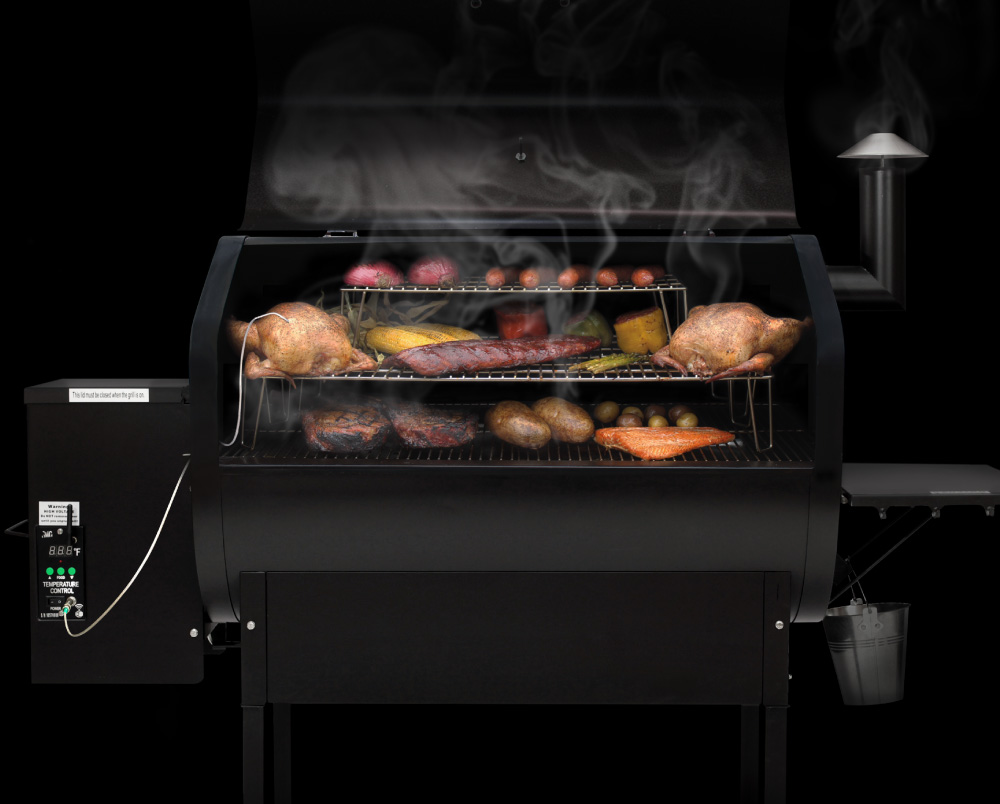

13.5″ PEAKED LID WITH
Massive Grill Space
Peaked Lid is perfect for large turkeys, stand-up chickens, meat hangers, and multi-level racks. Featured here is our Jim Bowie model with a standard 658 sq. in. grilling surface with 2 JB racks and 1 DB rack creating a total of 1,363 sq. in.

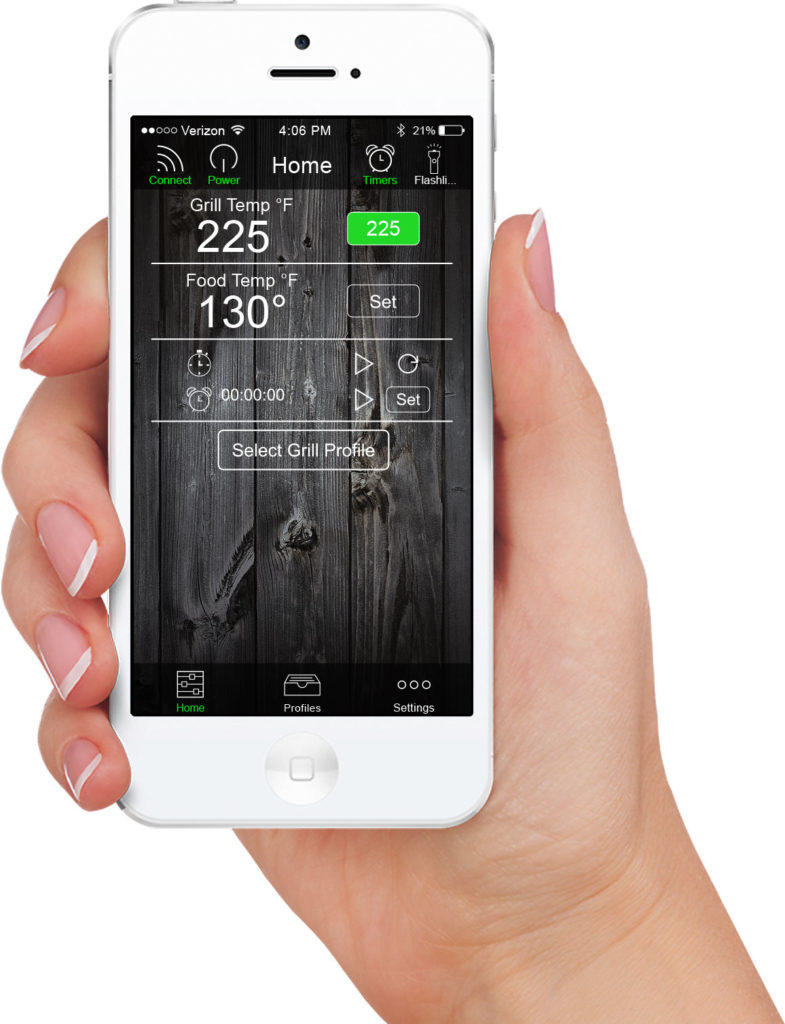

WIFI & SERVER MODE
Smart Control
Control & monitor grill and food temperatures.
Create and set cooking profiles that are fully customizable and programable for easy repetition.
Set timers and receive alerts to help manage your cooks even better.
WOOD-FIRED SCIENCE

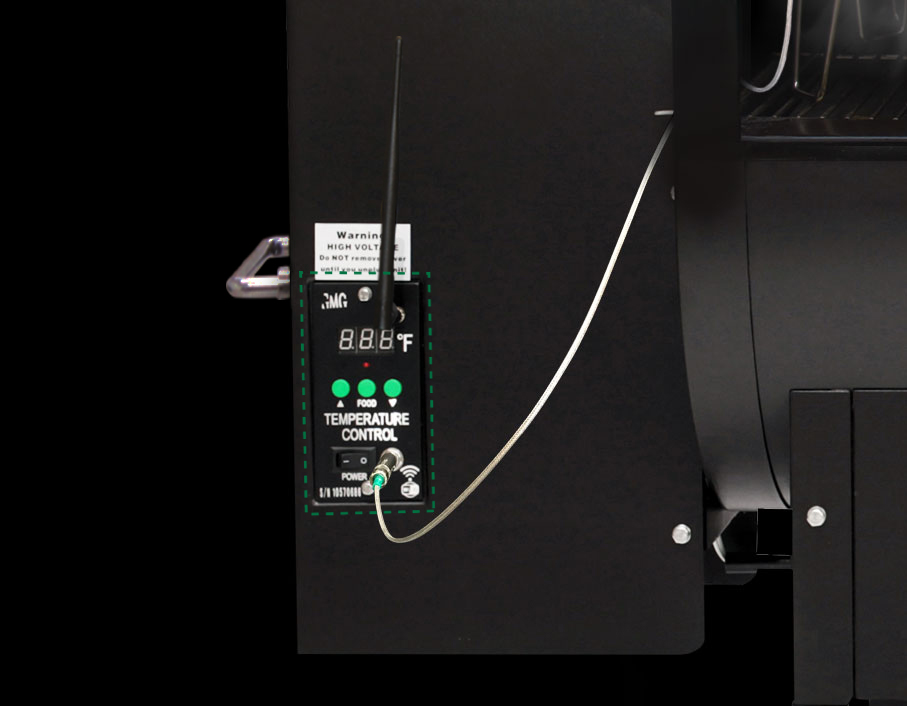

DIGITAL CONTROLLER – manages the internal temp by controlling the fuel and oxygen supply to the firebox.
AUGER MOTOR – turns the auger which feeds pellets into the firebox.
HEAT ROD – ignites the pellets and a combustion fan keeps them burning.
COMBUSTION FAN – the micro-adjusted variable-speed fan and auger motor allow you to keep your grill and food at the temperature you set.
FIREBOX – The Venturi-style firebox creates the ultimate wood-burning fire, circulating pure hardwood smoke and flavor throughout the grill.

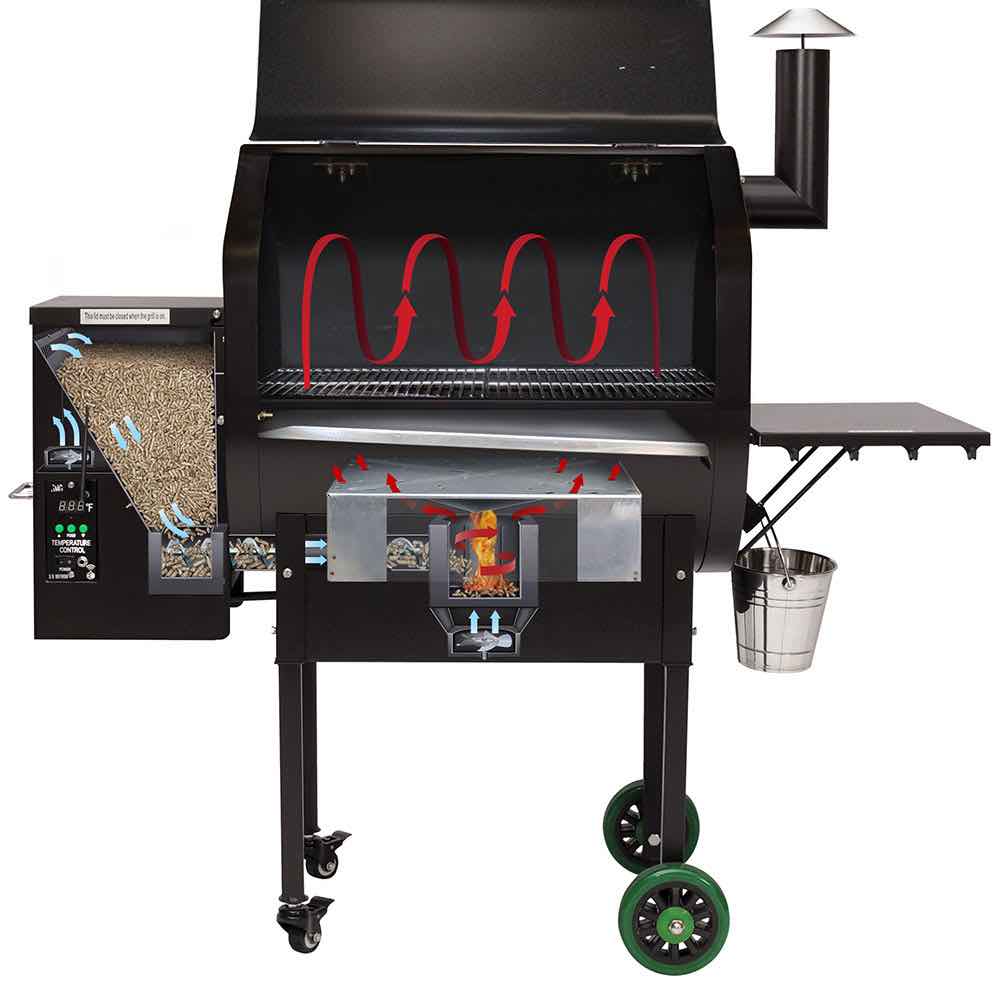

STAINLESS STEEL
Heat Distribution
The Heat Shield* that covers the Firebox distributes the heat to both sides of the grill and flows up into the convection-style grill chamber. A sensor mounted inside the grill sends data to the on-board computer ten times every second, and the controller adjusts the air and pellet flow to maintain the temperature you set.
*Heat Shield styles and positioning vary between the different grill models. View our support area for more information on heat shield setup and configuration.
WOOD-FIRED ANATOMY

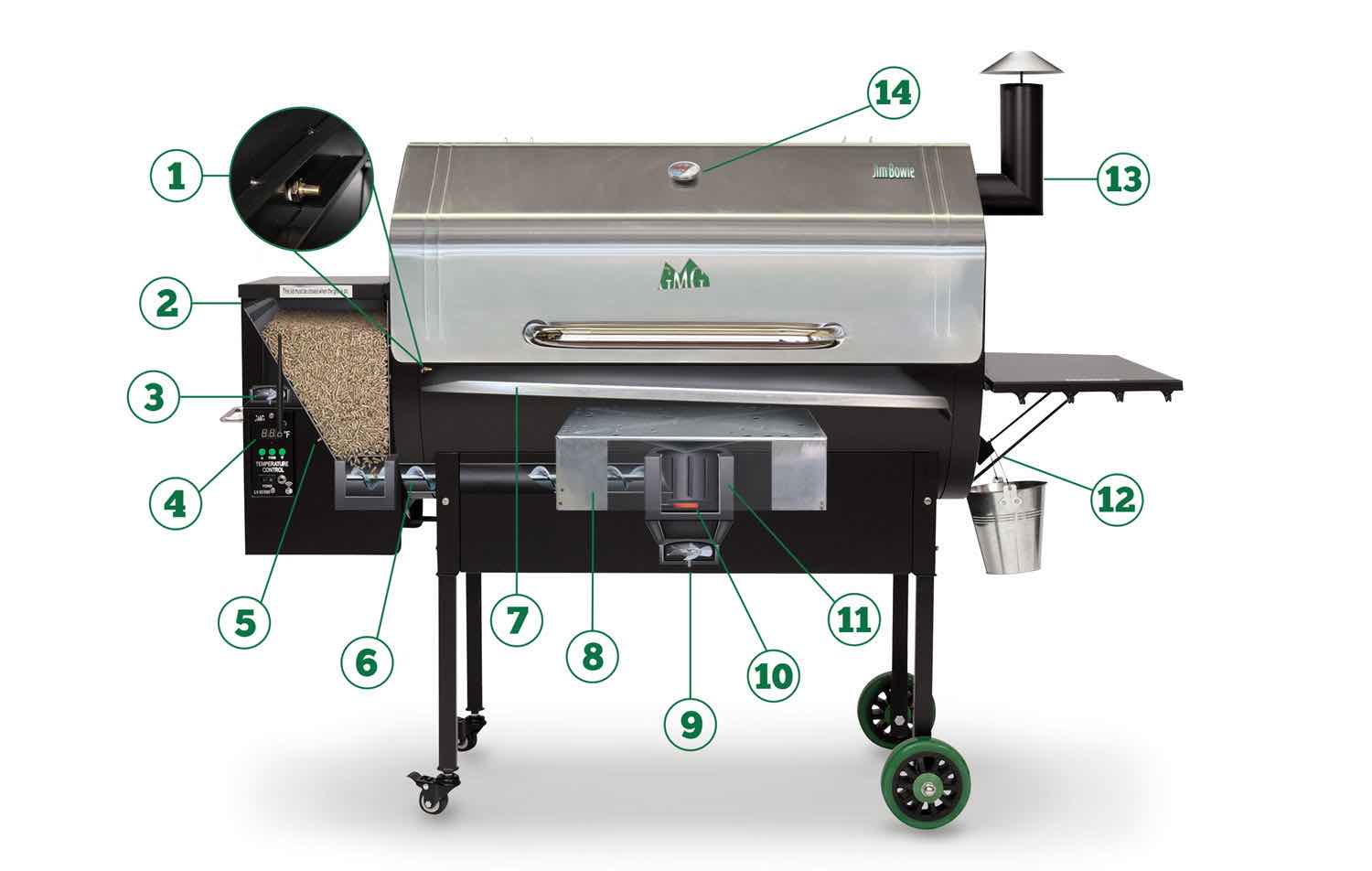

Jim Bowie
- 1 Thermal Sensor
- 2 Pellet Hopper
- 3 Hopper Fan
- 4 Digital Controller
- 5 Low Pellet Sensor
- 6 Auger
- 7 Grease Tray
- 8 Heat Shield
- 9 Combustion Fan
- 10 Igniter
- 11 Firebox
- 12 Drip System
- 13 Chimney
- 14 Dome Thermometer

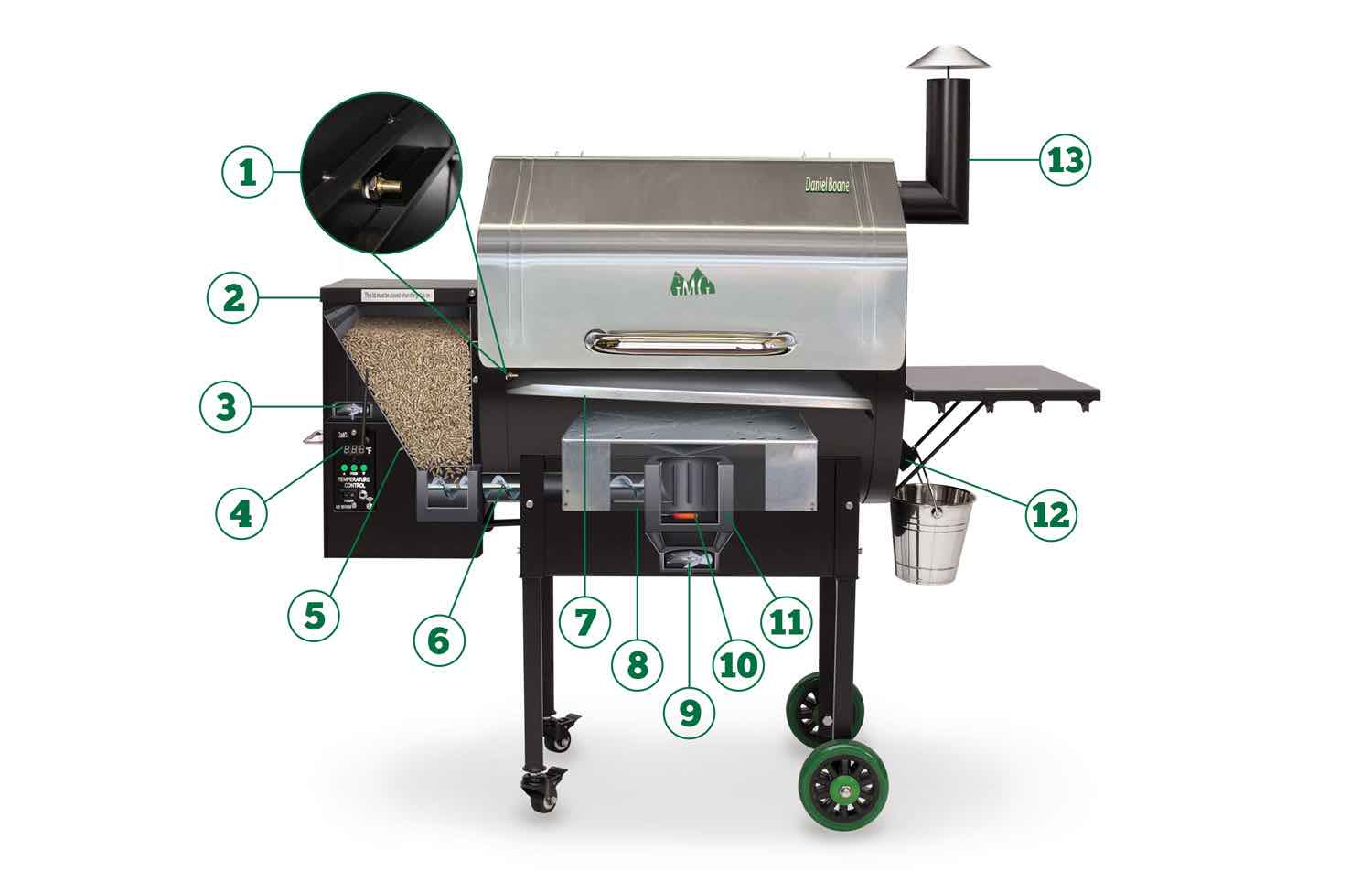

Daniel Boone
- 1 Thermal Sensor
- 2 Pellet Hopper
- 3 Hopper Fan
- 4 Digital Controller
- 5 Low Pellet Sensor
- 6 Auger
- 7 Grease Tray
- 8 Heat Shield
- 9 Combustion Fan
- 10 Igniter
- 11 Firebox
- 12 Drip System
- 13 Chimney

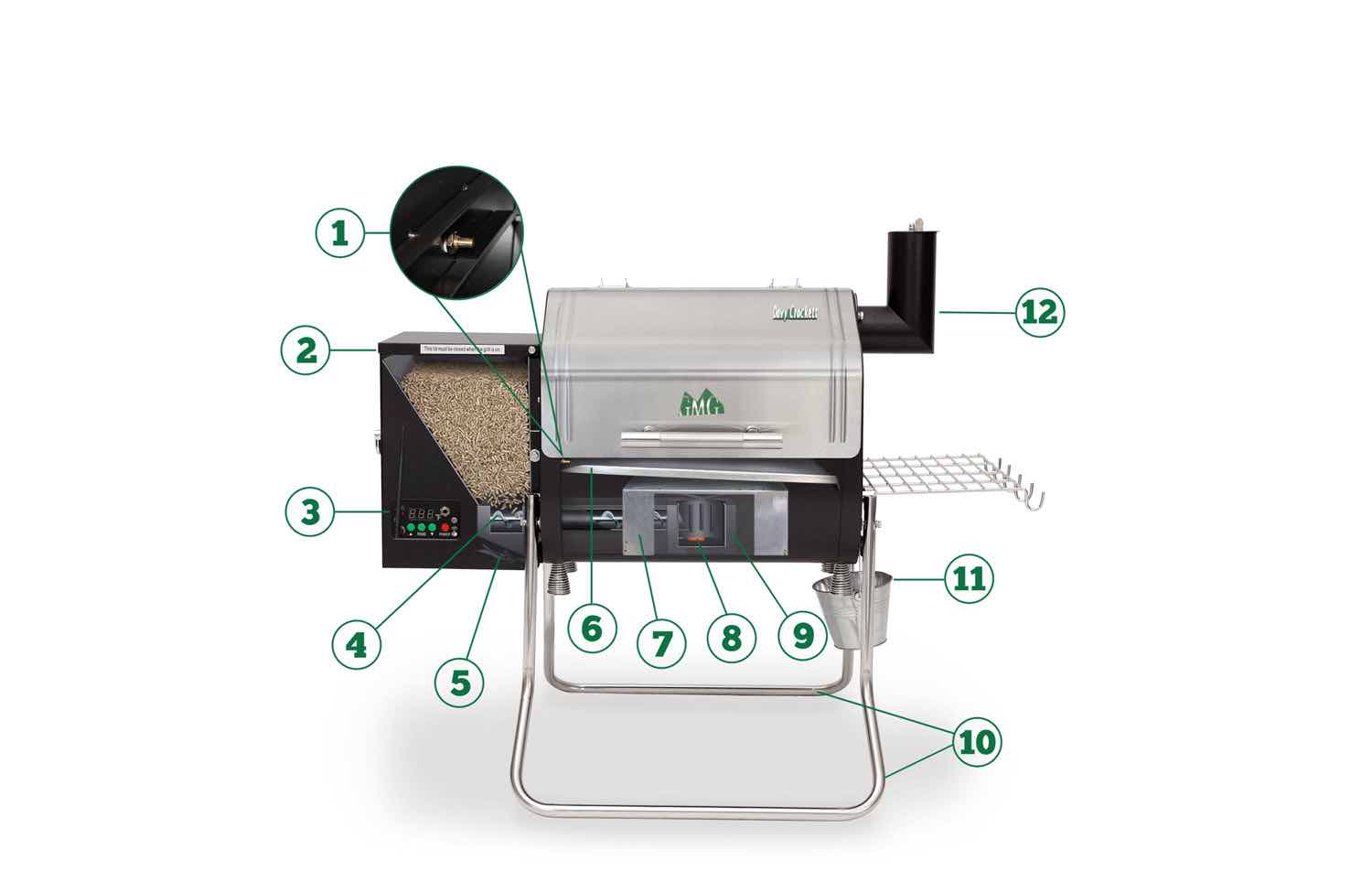

Davy Crockett
- 1 Thermal Sensor
- 2 Pellet Hopper
- 3 Digital Controller
- 4 Auger
- 5 Combustion Fan
- 6 Grease Tray
- 7 Heat Shield
- 8 Igniter
- 9 Firebox
- 10 EZ Fold & Carry Legs
- 11 Drip System
- 12 Chimney
