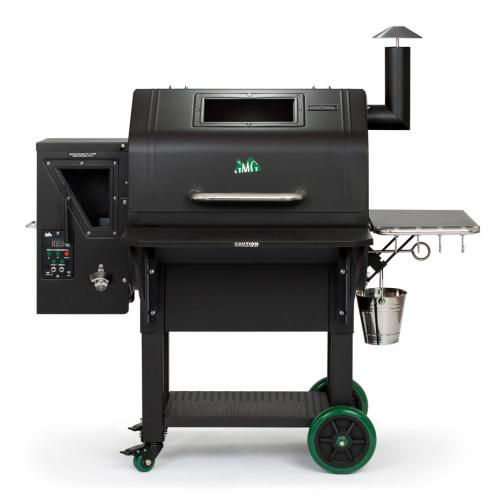

Daniel Boone
PRIME MODEL
Thank you for purchasing our Daniel Boone Prime WiFi pellet grill. Here are a few tips to get you started.
![safetyfirstcypress safety first icon](https://greenmountaingrills.com/wp-content/uploads/2017/04/safetyfirstcypress.png)
Before you set up your grill, make sure to keep the entire grill a minimum of 36 inches from all combustibles.
Reference your owner’s manual for all safety information.
![Safety Dimensions](https://greenmountaingrills.com/wp-content/uploads/2020/07/Safety_Dimensions.jpg)
![Fire Box](/wp-content/uploads/2017/03/Asset-6-1.png)
Priming
THE FIREBOX
![Prime Firebox](https://greenmountaingrills.com/wp-content/uploads/2019/05/Prime_FireboxHopper.jpg)
Prime the firebox with the small bag of pellets and make sure to fill up the hopper with pellets.
![Heat Shield](/wp-content/uploads/2017/03/Asset-9-1.png)

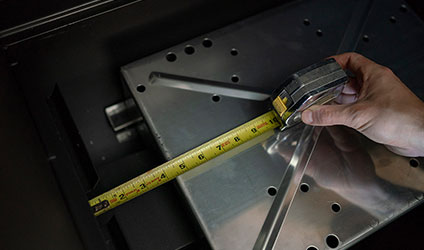

Proper installation of
HEAT SHIELD
![HeatShield_DBPrime Heat Shield](https://greenmountaingrills.com/wp-content/uploads/2019/05/HeatShield_DBPrime.jpg)
Daniel Boone
Approximately 4.25″ from inside left wall of grill
![Adjustment Rod](/wp-content/uploads/2019/05/Rod-icon.png)
Heat Shield
ADJUSTMENT ROD
Use the measurement on the heat shield adjustment rod as a guide. When threaded into the heat shield, the outside grill wall should be even with 0” for optimal heat distribution. As an additional guide, we have provided you measurements of the heat shield from the inside left wall of the grill chamber.
![Adjustment_Rod Adjustment Rod](https://greenmountaingrills.com/wp-content/uploads/2019/05/Adjustment_Rod.jpg)
![Grease Tray](/wp-content/uploads/2017/03/Asset-12-1.png)
How to Install
GREASE TRAY
![Tray_Install Tray Install](https://greenmountaingrills.com/wp-content/uploads/2019/05/Tray_Install.jpg)
VERY IMPORTANT:
Install the grease tray with the hole to the left and the half-moon crescent to the right. This ensures proper travel of grease into your grease trough. For easy clean up, feel free to wrap the grease tray in tin foil. MAKE SURE not to cover up the circle on the left side near the thermal sensor.
![Chimney Cap](/wp-content/uploads/2017/03/Asset-13-1.png)
Installing
CHIMNEY CAP
![Chimney_Height Chimney Cap](https://greenmountaingrills.com/wp-content/uploads/2019/05/Chimney_Height.jpg)
ALWAYS MAKE SURE THE CHIMNEY CAP IS OPEN.
Your grill needs to draft. Always make sure there is at least a two-finger or 1.5-inch opening.
![Airflow](/wp-content/uploads/2019/05/Airflow.png)
Close doors & lids for
PROPER AIRFLOW
![Closed_Doors Closed Door](https://greenmountaingrills.com/wp-content/uploads/2019/05/Closed_Doors.jpg)
IMPORTANT
ALWAYS close all lids and doors including pellet dump, ash clean-out, and hopper lid before starting the grill.
![Grill Power](/wp-content/uploads/2019/05/PluggingIN.png)
Properly connecting
GRILL POWER
Connect the power cords and adapter as pictured here. Make sure to keep your cords safe from rain or weathering.
![Grill_PlugIn Grill Plugin](https://greenmountaingrills.com/wp-content/uploads/2019/05/Grill_PlugIn.jpg)
![First Startup](/wp-content/uploads/2017/03/Asset-17.png)
Recommended steps for
FIRST STARTUP
This procedure is a way to ensure the auger feeds pellets and primes the firebox. ONLY perform these steps on the very first startup or to fill the auger and recharge the firebox if the grills runs out of pellets during a cook.
![1ST_POWER 1st power](https://greenmountaingrills.com/wp-content/uploads/2019/05/1ST_POWER.png)
![Initial Burn](/wp-content/uploads/2017/03/Asset-7-1.png)
Important steps for
INITIAL BURN
Burn-in the grill at 350°F for 30 minutes to remove any residue from the manufacturing process.
30 mins
350°F
![Caution](/wp-content/uploads/2017/04/caution-yellowcypress.png)
![Odd Sounds](/wp-content/uploads/2017/03/Asset-11-1.png)
The grill will make
ODD SOUNDS
![HopperFan HopperFan](https://greenmountaingrills.com/wp-content/uploads/2019/05/HopperFan.jpg)
Huffing noises are normal.
The combustion fan, inside the hopper, will turn off and on regularly to provide the correct amount of oxygen to the fire to maintain the set temperature.
![Power Down](/wp-content/uploads/2017/03/Asset-17.png)
How to correctly
POWER DOWN
Press the red power button to switch the grill into fan mode. Do not unplug the grill until it has completed fan mode and the display reads “off.” Fan mode is important as it not only cools down the grill properly but also blows ash out of the firebox for your next cook.
![PowerDown Power Down](https://greenmountaingrills.com/wp-content/uploads/2019/05/PowerDown.png)
![Standard Startup](/wp-content/uploads/2017/03/Asset-17.png)
After first use steps for
STANDARD STARTUP
IMPORTANT: If this is your first startup, please see the FIRST STARTUP section on the previous page.
Plug in the grill. The display should read off. Press the red power button to turn the unit on. The unit will go through it’s 0-1-2-3 process and will heat up to 150°F. ALWAYS allow the grill to reach 150°F before adjusting to your desired temperature.
![StandardStart Standard Start](https://greenmountaingrills.com/wp-content/uploads/2019/05/StandardStart.png)
![Grill Cleaning](/wp-content/uploads/2017/03/Asset-8-1.png)
Recommended regular
GRILL CLEANING
![Bag](/wp-content/uploads/2017/04/fire-bag.png)
ABOUT
EVERY
2-3 BAGS
80-100LBS
ALWAYS ENSURE THAT THE GRILL IS COLD AND THE FIRE IS OUT BEFORE CLEANING.
Keep the inside of the grill clean using a Shop-Vac. This will take only a few minutes. Remove the interior parts and vacuum any ash and residue out of the base of the grill and the firebox. WAIT AT LEAST ONE HOUR AFTER TURNING OFF THE GRILL BEFORE USING THE ASHVAC.
![AshClean-out AshClean out](https://greenmountaingrills.com/wp-content/uploads/2019/05/AshClean-out.jpg)
AshVac Clean-Out
Use this method to easily clean out the firebox without removing any internal parts. Open the ash clean-out door located on the right side of the grill. Place the end of the vacuum hose over the hole of the clean-out tube that runs into the base of the burn pot. This will remove most of the excess ash from the firebox. THIS DOOR MUST BE CLOSED WHEN OPERATING THE GRILL.
![Air Temperature](/wp-content/uploads/2017/03/Asset-16-1.png)
Understanding your grill’s
AIR TEMPERATURE
The PT200 Platinum Sensor sends data to the computer. This “brain” analyzes the data and adjusts the airflow and pellet fuel flow to maintain the set temperature. Many things affect the data gathered by the sensor–opening the lid, wind, grease splatter, humidity, altitude, and gravity (if the grill is not on level ground).
The computer analyzes all the erratic information and averages it over time. Then, it displays the best result as the most accurate representation of the grill’s current temperature. This is why an instantaneous air temperature reading from a third-party product does not provide much useful information.
![Smart Control](/wp-content/uploads/2017/03/Asset-4-1.png)
Welcome to new age
SMART CONTROL
TIP: The serial # on the back of your grill is your grill’s WiFi password.

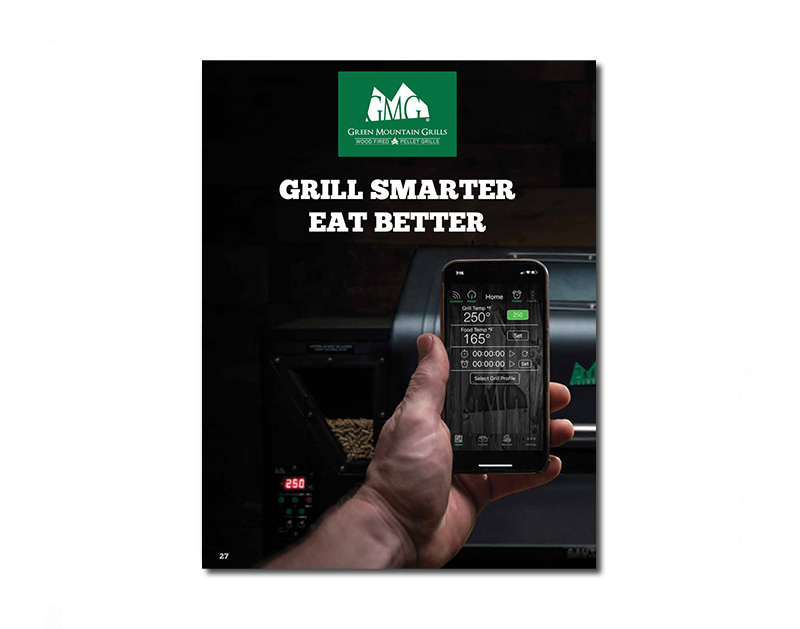

ALWAYS check to make sure your grill has the latest firmware. See page 81 of your manual, for the full app guide. Also check out the Smart Control section on our website: greenmountaingrills.com/smart-control
![Mobile](/wp-content/uploads/2019/05/App-SC.jpg)
![Apple Store](/wp-content/uploads/2017/03/dwn-apple.png)
![Google Play Store](/wp-content/uploads/2017/03/dwn-google.png)
![Support](/wp-content/uploads/2019/05/Support_Icon.png)
Have questions or need
SUPPORT?
Prefer visual instruction?
View our videos >
Need support? Go to:
Support Page >
![Warranty](/wp-content/uploads/2019/05/Warranty-Icon.png)
Grill Warranty
REGISTRATION
Register your grill and enter to win some of our Pro Accessories or a free bag of Pellets.
