TRAILER-RIG

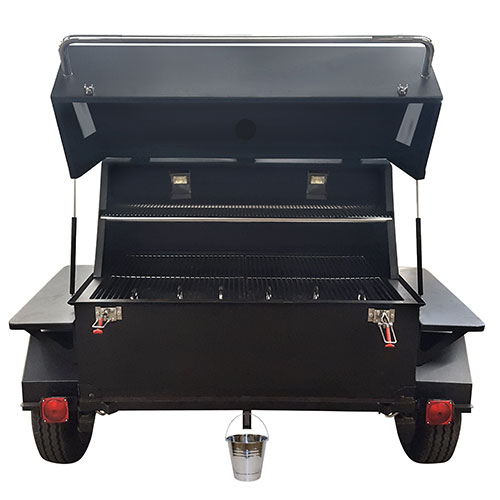

BIG PIG TRAILER RIG

PRIME PLUS MODEL

Thank you for purchasing our BIG PIG TRAILER RIG Prime WiFi pellet grill. Here are a few tips to get you started.

TRAILER-RIG-MANUAL-COVER

Step-by-step

OWNERS MANUAL

Download Here >

safety first icon

Before you set up your grill, make sure to keep the entire grill a minimum of 48 inches from all combustibles.

Reference your owner’s manual for all safety information.

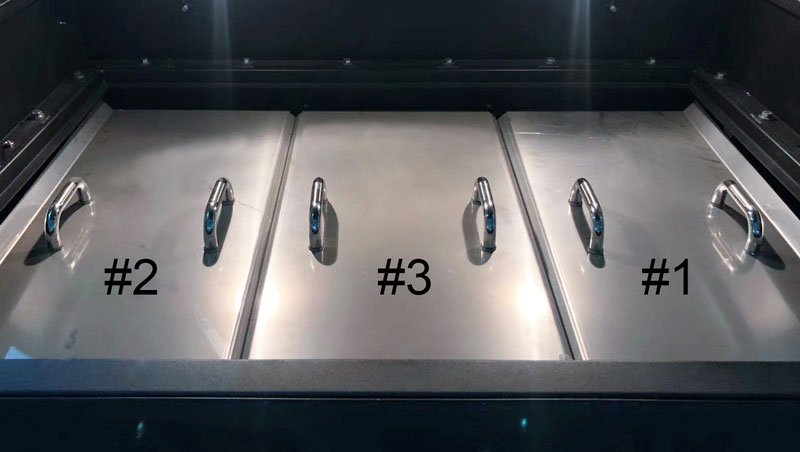

Grease Tray

How to Install

GREASE TRAY

TR-Grease-Tray-Order

VERY IMPORTANT:

Once you install the handles on each tray, install the trays in the order as shown here:

  1. Right tray
  2. Left tray
  3. Middle tray

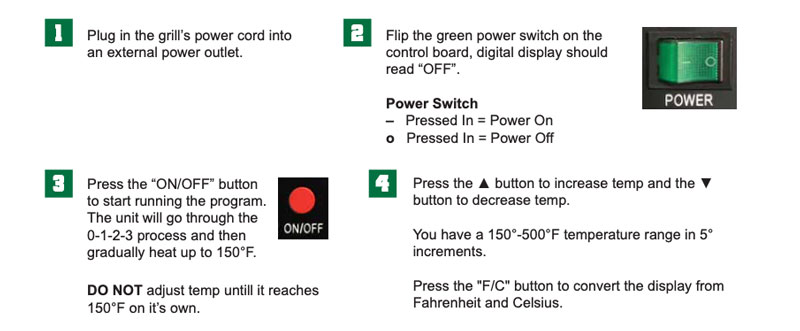

Powering Up

Recommended steps for

POWERING UP

TR-POWER-UP
Initial Burn

Important steps for

INITIAL BURN

Burn-in the grill at 350°F for 30 minutes to remove any residue from the manufacturing process.

Time30 mins

Heat350°F



CautionALWAYS allow your grill reach 150°F before adjusting the temperature.

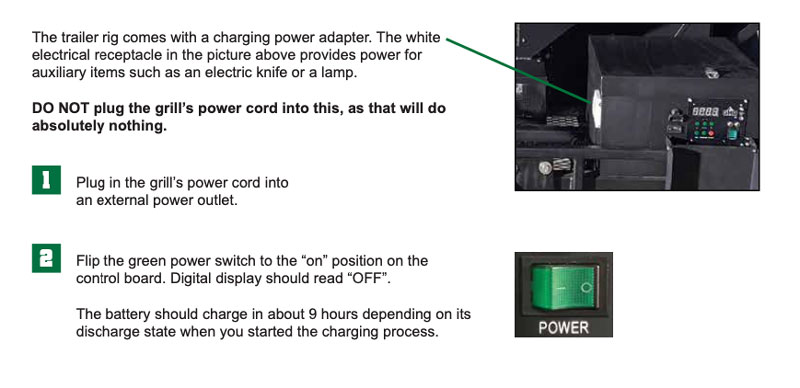

Battery Charging

Important steps for

BATTERY CHARGING

TR-BATTERY-CHARGING
Sounds

The grill will make

ODD SOUNDS

HopperFan

Huffing noises are normal.

The combustion fan, inside the hopper, will turn off and on regularly to provide the correct amount of oxygen to the fire to maintain the set temperature.

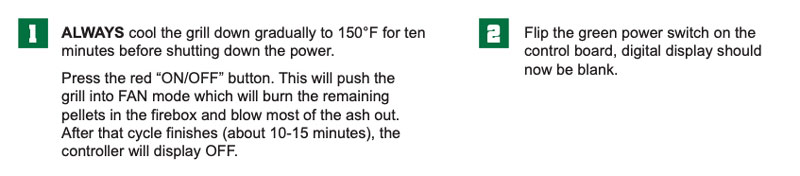

Power Down

How to correctly

POWER DOWN

TR-POWERING-DOWN
Grill Cleaning

Recommended regular

GRILL CLEANING

Bag

ABOUT
EVERY
2-3 BAGS
80-100LBS

ALWAYS ENSURE THAT THE GRILL IS COLD AND THE FIRE IS OUT BEFORE CLEANING.

Keep the inside of the grill clean using a Shop-Vac. This will take only a few minutes. Remove the interior parts and vacuum any ash and residue out of the base of the grill and the firebox.

Meat Probes

Connecting and using your

MEAT PROBES

TR-Meat-Probe

To use this feature, just plug the connector into the receptacle on the front of the controller.

Lift the stainless flap on the left side of the grill and push the probe through the hole. Then, insert the probe into the center of the food you are cooking. Press either the Probe 1 or 2 button to display the temperature of that probe. This process takes a minute or two to stabilize.

To return to the grill temperature display, simply press the probe button again. If you do not have the probe installed in the control panel, then your digital display will read “NFD” (no food) when you press either probe button. The probe is not suitable for reading temperatures above 257°F (150°C).

IMPORTANT: Always make sure you switch back to grill temperature display before changing your grill temp.

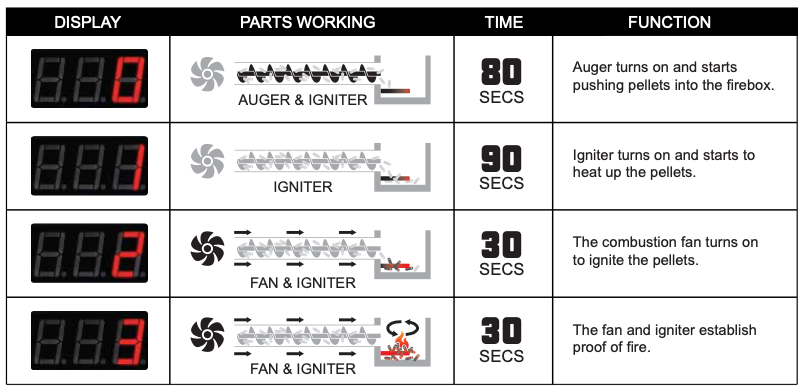

Startup Cycle

Understanding the 0-1-2-3’s

STARTUP CYCLE

TR-STARTUP-CYCLE
Smart Control

Welcome to new age

SMART CONTROL

ALWAYS check to make sure your grill has the latest firmware. For more information check out the Smart Control section on our website: greenmountaingrills.com/smart-control

MobileApple StoreGoogle Play Store
Air Temperature

Understanding your grill’s

AIR TEMPERATURE

The PT200 Platinum Sensor sends data to the computer. This “brain” analyzes the data and adjusts the airflow and pellet fuel flow to maintain the set temperature. Many things affect the data gathered by the sensor–opening the lid, wind, grease splatter, humidity, altitude, and gravity (if the grill is not on level ground).

The computer analyzes all the erratic information and averages it over time. Then, it displays the best result as the most accurate representation of the grill’s current temperature. This is why an instantaneous air temperature reading from a third-party product does not provide much useful information.

Warranty

Grill Warranty

REGISTRATION

Register your grill and enter to win some of our Pro Accessories or a free bag of Pellets.

Support

Have questions or need

SUPPORT?

Prefer visual instruction?
View our videos >

Need support? Go to:
Support Page >
